MLJFlux

MLJFlux 就是 MLJ 框架对 Flux 的封装，从而使 Flux 易于直接使用

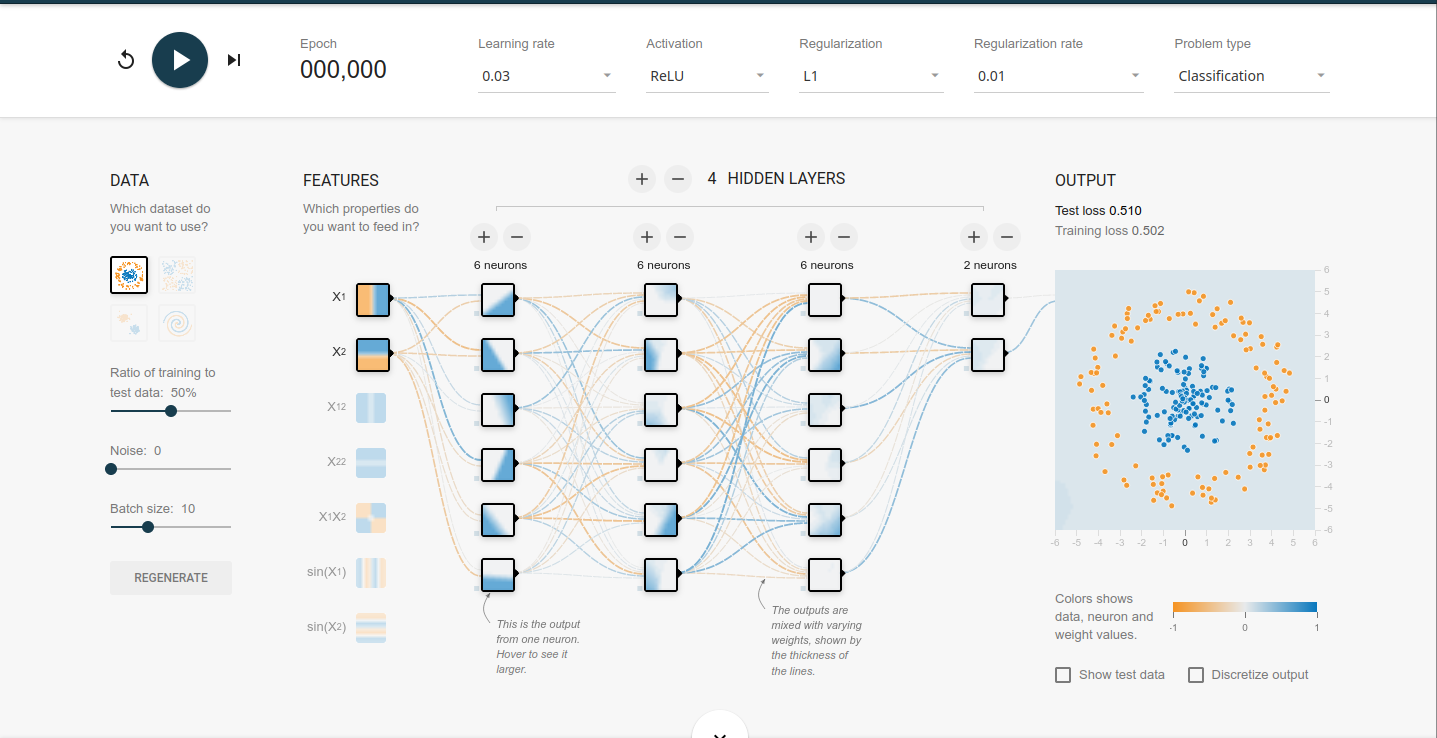

可以参照这个 PlayGround 来学习

其中

features 表示特征
hidden layers 表示隐藏层
learning rate 设置学习率
activation 设置每个神经元的激活函数
regularzation 设置正则化方法
regularzation rate 设置正则化惩罚力度

但在 MLJ 和 MLJFlux 中，你是找不到任何有关学习率的参数设置的，因为已经有方法可以不设置学习率了，具体参考这篇文章
在 MLJFlux 中，有以下几种模型

模型类型	预测类型	`scitype(x) <:` 啥	`scitype(y) <:` 啥
`NeuralNetworkRegressor`	`Deterministic`	`Table{Continuous} with n_in columns`	`AbstractVector{<:Continuous} n_out = 1`
`MultitargetNeuralNetworkRegressor`	`Deterministic`	`Table{Continuous} with n_in columns`	`Table(Continuous) with n_out columns`
`NeuralNetworkClassifier`	`Probabilistic`	`Table(Continuous) with n_in columns`	`AbstractVector{<:Finite} with n_out classes`
`ImageClassifier`	`Probabilistic`	`AbstractVector(<:Image{W,H}) with n_in = (W, H)`	`AbstractVector{<:Finite} with n_out classes`

它们的参数有

builder : Default = MLJFlux.Linear(σ=Flux.relu) (regressors) or MLJFlux.Short(n_hidden=0, dropout=0.5, σ=Flux.σ) (classifiers)
optimiser : The optimiser to use for training. Default = Flux.ADAM()
loss : The loss function used for training. Default = Flux.mse (regressors) and Flux.crossentropy (classifiers)
n_epochs : Number of epochs to train for. Default = 10
batch_size : The batch_size for the data. Default = 1
lambda : The regularization strength. Default = 0. Range = [0, ∞)
alpha: The L2/L1 mix of regularization. Default = 0. Range = [0, 1]
rng: The random number generator (RNG) passed to builders, for weight intitialization, for example. Can be any AbstractRNG or the seed (integer) for a MersenneTwister that is reset on every cold restart of model (machine) training. Default = GLOBAL_RNG.
acceleration: Use CUDALibs() for training on GPU; default is CPU1().
optimiser_changes_trigger_retraining : True if fitting an associated machine should trigger retraining from scratch whenever the optimiser changes. Default = false

来挑几个用的上的参数来说吧，

builder 那个 hidden layer 的表示
optimiser 代表优化器，具体文档
loss 表示损失函数
n_epochs 表示训练次数
batch_size 表示每次拿几个数据一起处理
lambda 表示正则化惩罚力度
alpha 表示 l2/l1 混合的比例？

对照上图，以分类问题为例，我们需要新建一个 builder 结构来表示隐藏层

隐藏层有4层
每一层分别有6，6，6，2个神经元
每个神经元的激活函数是 ReLu
正则化方法是l1
正则化惩罚力度是 0.01

由此，创建一个 builder

mutable struct NetworkBuilder <: MLJFlux.Builder
	n1::Int # 第一层神经元数
	n2::Int # 第二层神经元数
	n3::Int # 第三层神经元数
	n4::Int # 第四层神经元数
end

再为其重载 MLJFlux.build 方法

function MLJFlux.build(model::NetworkBuilder, rng, nin, nout)
	init = Flux.glorot_uniform(rng)
	return Chain(
		Dense(nin, model.n1, relu, init = init),
		Dense(model.n1, model.n2, relu, init = init),
		Dense(model.n2, model.n3, relu, init = init),
		Dense(model.n3, model.n4, relu, init = init),
		Dense(model.n4, nout, relu, init = init)
	)
end

其中

rng 表示随机数生成器，大概是这个意思
nin 表示输入的特征个数
nout 表示输出的结果个数

当然，这些不用我们设置，我们只是提供一个方法实现

接下来就可以定义模型了

classifier = NeuralNetworkClassifier(
	builder = NetworkBuilder(6, 6, 6, 2),
	finaliser = softmax,
	epochs = 200,
	batch_size = 10,
	lambda = 0,
	alpha = 0.01
)

他的训练次数是 epochs 而不是 n_epochs ，不知道是不是文档写错了，大家按照这个来就好了
定义完模型，就像 MLJ 模型那样调用就好了

using MLJFlux, MLJ, Statistics, Flux, CSV, StableRNGs, Plots
using DataFrames: DataFrame
import Random.seed!;
seed!(123)
rng = StableRNG(123)
plotly()
originData = CSV.read("data/titanic/train.csv", DataFrame)

typeTransformModel!(dataframe::DataFrame) = begin
	if in("Survived", names(dataframe))
		coerce!(dataframe, :Survived => Multiclass)
	end
	coerce!(dataframe, Count => Continuous)
	coerce!(dataframe, Textual => Multiclass)
	return dataframe
end

fillMissingModel = FillImputer(
	features=[:Age, :Embarked],
	continuous_fill = e -> skipmissing(e) |> mode,
	finite_fill = e -> skipmissing(e) |> mode)
	newFeatureModel!(dataframe::DataFrame) = begin
	# MODULE FeatureA 聚集 Age, Sex --> 12岁以下儿童以及妇女，12岁以上男性
	feature_filter_a(age, sex) = age >= 12 && sex == "male" ? "A" : "B"
	dataframe[!, :FeatureA] = map(feature_filter_a, dataframe[!, :Age], dataframe[!, :Sex])
	# MODULE FeatureB 聚集 SibSp, Parch ---> 家庭人员数量
	family_size(number) = begin
		if number == 1
			return 0
		elseif number >= 2 && number <= 4
			return 1
		else
			return 2
		end
	end
	dataframe[!, :FeatureB] = map(family_size, dataframe[!, :Parch] .+ dataframe[!, :SibSp] .+ 1)
	# MODULE FeatureC log(Fare + 1), encode(Pclass) -> 1, 2, 3
	dataframe[!, :Fare] = map(floor, log.(dataframe[!, :Fare] .+ 1))
	# TODO don't forget to coerce scitype
	coerce!(dataframe, :FeatureA => Multiclass, :FeatureB => Continuous)
	return dataframe
end

encodeModel = OneHotEncoder(features=[:Embarked, :FeatureA])
dropUnusedModel = FeatureSelector(features = [:Age, :Sex, :SibSp, :Parch, :Cabin, :PassengerId, :Name, :Ticket], ignore=true)

transformModel = (
	typeTransformModel!,
	fillMissingModel,
	newFeatureModel!,
	encodeModel,
	dropUnusedModel
)
transformMachine = machine(transformModel, originData)

fit!(transformMachine)
outputData = MLJ.transform(transformMachine, originData)
originSample = CSV.read("data/titanic/test.csv", DataFrame)

# generic typeTransformModel, ignore
fillMissingModel = FillImputer(features=[:Age, :Fare], continuous_fill = e -> skipmissing(e) |> mode)

# generic new feature generate
# generic encode model
# generic drop unused
transformSampleModel = Pipeline(
	typeTransformModel!,
	fillMissingModel,
	newFeatureModel!,
	encodeModel,
	dropUnusedModel
)

transformSampleMachine = machine(transformSampleModel, originSample)
fit!(transformSampleMachine)

outputSample = MLJ.transform(transformSampleMachine, originSample)

Y, X = unpack(outputData, colname -> colname == :Survived, colname -> true)

rng = StableRNG(1234)
trainRow, testRow = partition(eachindex(Y), 0.7, rng=rng)

mutable struct NetworkBuilder <: MLJFlux.Builder
	n1::Int
	n2::Int
	n3::Int
	n4::Int
end

function MLJFlux.build(model::NetworkBuilder, rng, nin, nout)
	init = Flux.glorot_uniform(rng)
	return Chain(
		Dense(nin, model.n1, relu, init = init),
		Dense(model.n1, model.n2, relu, init = init),
		Dense(model.n2, model.n3, relu, init = init),
		Dense(model.n3, model.n4, relu, init = init),
		Dense(model.n4, nout, relu, init = init)
	)
end

classifier = NeuralNetworkClassifier(
	builder = NetworkBuilder(10, 6, 6, 6),
	finaliser = softmax,
	epochs = 200,
	batch_size = 10,
	lambda = 0.01,
	alpha = 0.4
)

mach = machine(classifier, X, Y)
fit!(mach, rows = trainRow)

measure = evaluate!(mach,
	resampling = CV(nfolds = 6, rng = rng),
	measure = cross_entropy,
	rows = testRow
)

outputPredict = mode.(predict(mach, outputSample)) |> nums -> convert(Vector{Int}, nums)
output_frame = DataFrame()
output_frame[!, :PassengerId] = convert(Vector{Int}, originSample[!, :PassengerId])
output_frame[!, :Survived] = outputPredict
CSV.write("data/titanic/predict.csv", output_frame)
